Foam comes in many flavors – I find that combining soft foams (volara foam, craft foam) to do curves with hard foam (foam insulation) for flat areas, I can get nearly any shape I want, along with some excellent details carved into the surfaces.

When coated with fiberglass resin and/or cloth, the foam becomes quite firm, and should stand up to casual usage. Additional layers of resin and cloth will increase strength dramatically, though they will also increase the weight of the armor significantly, so one should be aware of this tradeoff as the armor is being constructed.

Rough Sketch
Initial Pattern Drawing

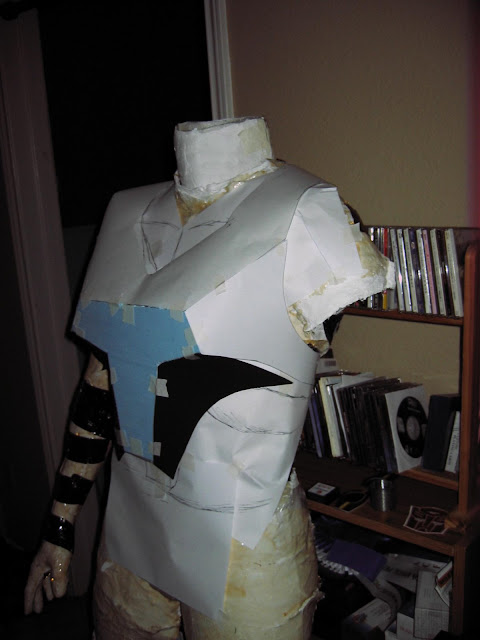

The second step I take for any armor build is to sketch out the rough armor pieces. The first, of course, is research. I try to find images showing the armor from as many angles as possible, and watch it in motion to get a feel for how it moves. I then tape paper to a lifecast / body double that I made a few years ago with the help of a friend, and start drawing out rough armor shapes.

Initial Construction
Chest
Once the rough sketch is complete, I start building up the actual armor shape. To do this, I use a mix of paper, craft foam, and foam insulation, depending on how flexible I need the shape to be.

Pattern Refinement

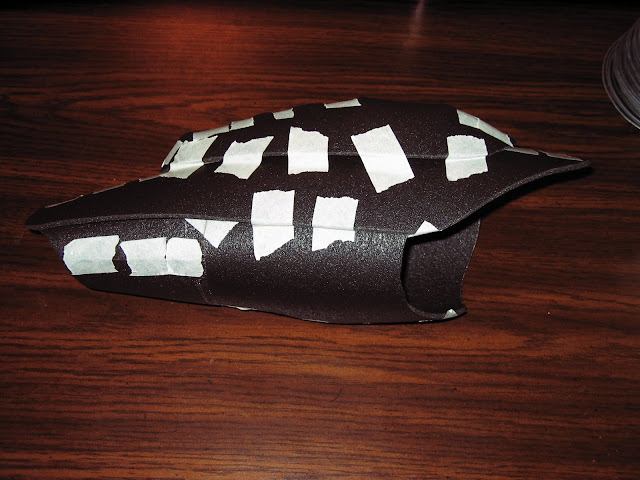

Shoulder patternShoulder Pattern (vector)
At this point, I make a paper outline of the armor piece, then refine the shape, both by hand and in the computer after scanning it in and using the programs Paint, Photoshop, and Inkscape. This lets me get a smooth final result, which can be printed out for later use.

Cut Out

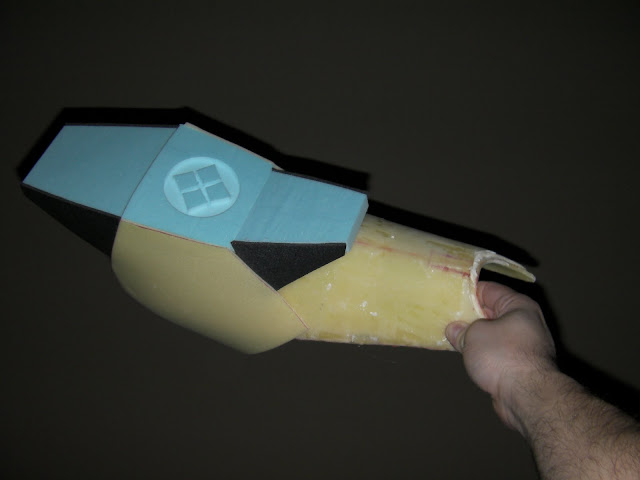

Forearm
Next, I use the refined pattern parts to trace out the final shapes on the proper foam for the armor – thin foam for closed shapes, thicker foam for open shapes such as the shoulder guards, thick foam insulation for segments that need engraving. This is both the easiest and most difficult step, since the tracing is simple, but getting the shape cutting out precisely is difficult.

Alternate Approach : Shape / Pattern

Not all armor shapes lend themselves well to the pattern / construct / refine / cut out cycle described above. Sometimes you have a shape which you want to duplicate with armor. To do this, you first cut strips of soft foam and layer them over the shape you want to build armor around.

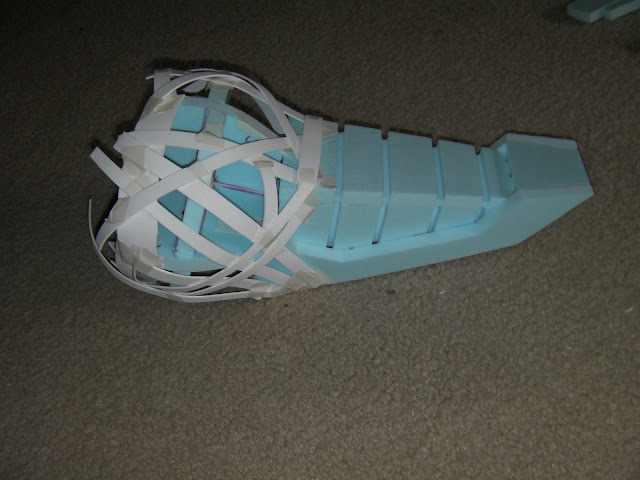

Shoulder - Ball 1.JPGShoulder - Ball 2.JPG

Next, you use duct tape to coat the foam, as if the duct tape would be the armor.

Shoulder - Ball 3.JPG

After that, you can cut away the duct tape, which has become the pattern for your armor part. I suggest dupicating this pattern, so you can clean it up a bit, but I know of some people who just use the duct tape version directly, since it is sturdy enough to last for years.

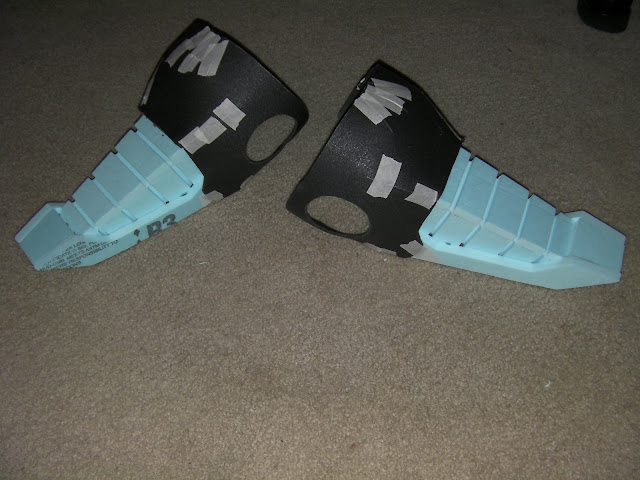

Shoulder - Ball 4.JPG

Fiberglassing

Working with fiberglass resin means working with chemicals. Be sure to wear proper protection, to protect your work area, and to be in a well ventilated area. Even epoxy fiberglass resin, which has a very mild odor, isn’t good for you to breathe for long periods.

To fiberglass foam armor, you first cut out shaped pieces of fiberglass mat. Cut enough that you can layer the pieces in various directions and in multiple layers for strength. Pile the cut pieces to the side of your work area, where you can easily get them, but where you won’t accidentally drip resin onto the pile.

Next, mix up your fiberglass resin. It usually takes about a minute to get it thoroughly combined. Once mixed, paint a layer of resin onto your foam piece where you want to fiberglass.

After you get this base layer of resin in place, start placing fiberglass matting onto your armor part. Don’t worry about fiberglass going off the end of your armor, it’s easy to trim later. The base layer of resin should help hold the matting in place as you get several pieces arranged.

Once several pieces of matting are down, plaster them in place with additional resin. The matting will soak in the resin, and should stay mostly in place if you use gentle pressure when applying the resin.

Add several layers of fiberglass mat and resin, depending on the strength needed for the armor part. You can add additional layers after the first set have dried, though you may need to sand the part smooth again to get the matting to lay flat. 3 layers of resin/matting usually provides good strength, especially if the layers go in different directions to give a woven approach.

Sanding / Smoothing / Polishing

Sanding fiberglass is a time consuming process.  I use a handheld “mouse” sander, a dremel, and a rotary sander.  These aren’t all required – in fact, the dremel is the tool I use the most when smoothing armor, to take care of the drips and ridges that form when the fiberglass resin dries.  The mouse sander helps to continue the smoothing process, while the rotary sander is more powerful, but louder and messier.  Each has its place in the sanding process.

In essence, the process to smooth the armor is as follows:

  • Use the dremel to remove major lumps, bumps, and ridges that you don’t want in the final armor
  • Use the rotary sander to do major smoothing
  • Use the mouse sander to do minor / fine smoothing
  • Hand sand delicate areas

Layers

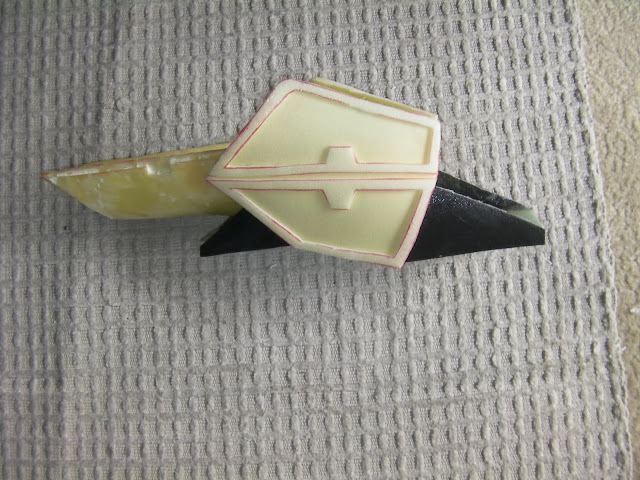

It’s easy to work with fiberglassed objects in multiple layers.  For Ryo’s gloves, I created basic hand armor by fiberglassing craft foam shapes wrapped around my latex-gloved hand.  Once those were hard, I could then hot glue additional armor details to them, which I later fiberglassed.


I took a similar approach when attaching the knee armor
